Core popular science of motor winding technology: precise tension control determines the performance of finished motors

The motor coil is the core heart of motor operation. The uniformity of the winding process, turn number precision, and wire arrangement density directly affect the motor's speed stability, torque output, heat generation, and service life. Many motor manufacturers experience problems such as loud noise in finished products, excessively high temperature rise, insufficient power, and low yield rate. This is not a problem with the material of the stator and rotor, but is caused by unstable tension, disordered wire arrangement, and turn number deviation during the winding process. Traditional manual winding and simple equipment have uncontrollable tension, and are prone to defects such as wire stretching, overlapping wires, collapsed wires, and uneven density, causing inconsistent motor electromagnetic parameters and poor batch stability, and unable to meet the requirements of modern standardized mass production of motors.

The industry's professional winding process emphasizes three major standards: constant tension, equidistant wire arrangement, and precise turn count. A stable dynamic tension system can avoid thin wires being stretched thinner, paint film damage, and loose empty winding of thick wires; a precise servo wire arranging structure eliminates overlapping wires, wire pressing, and misalignment, ensuring uniform coil slot fill rate, making the motor magnetic circuit more stable and operating temperature rise lower. Motor winding machines have a wide range of applicable wire materials and can be compatible with enameled copper wire, aluminum wire, and multi-strand parallel winding wire materials. They are suitable for various winding processing such as micro motors, DC brushless motors, series-excited motors, and induction motors, and are widely used in fields such as home appliance motors, power tools, automotive micro motors, and industrial servo motors.

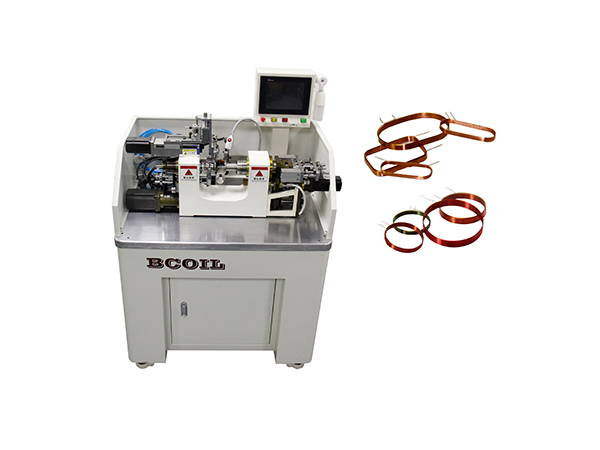

Dongguan Shijie Baocheng Automation Equipment Manufacturing Factory focuses on the research and development and production of motor winding machines. The equipment is equipped with an intelligent servo tension control system, with small dynamic tension fluctuation, and can precisely adapt to the winding needs from micro-fine wires to conventional thick wires, effectively eliminating common problems such as wire breakage, paint damage, and disordered wire arrangement. The equipment has precise turns, neat wire arrangement, and full coil forming, greatly improving the consistency and stability of finished motors, and reducing motor temperature rise and operating noise. It supports parameter storage and one-click recall, making model changeover and machine adjustment convenient, adapting to flexible production of multiple varieties, and helping motor manufacturing enterprises stabilize quality, reduce losses, and improve mass production efficiency.
