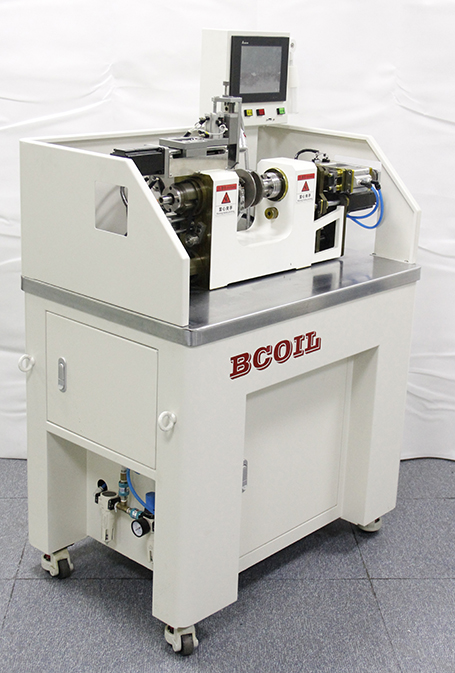

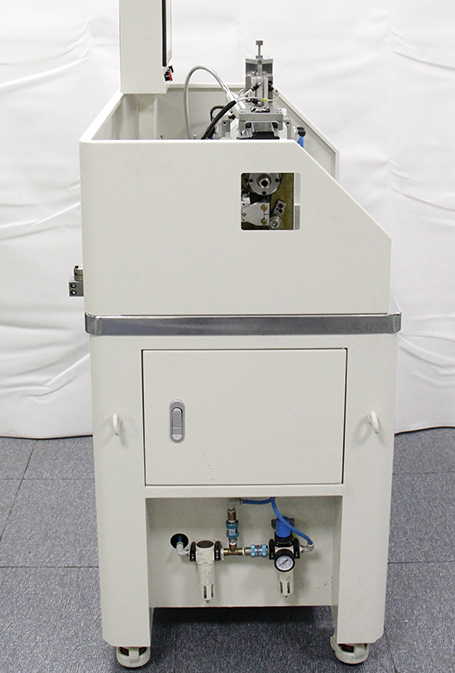

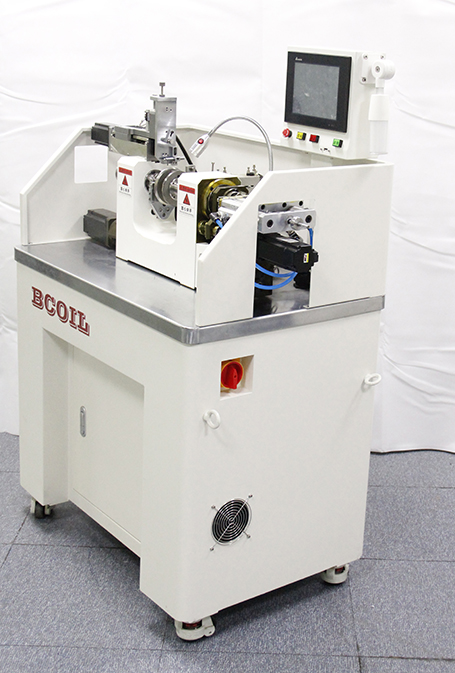

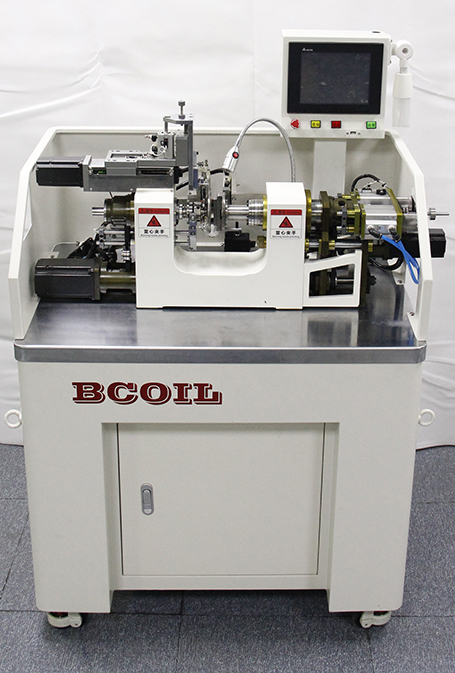

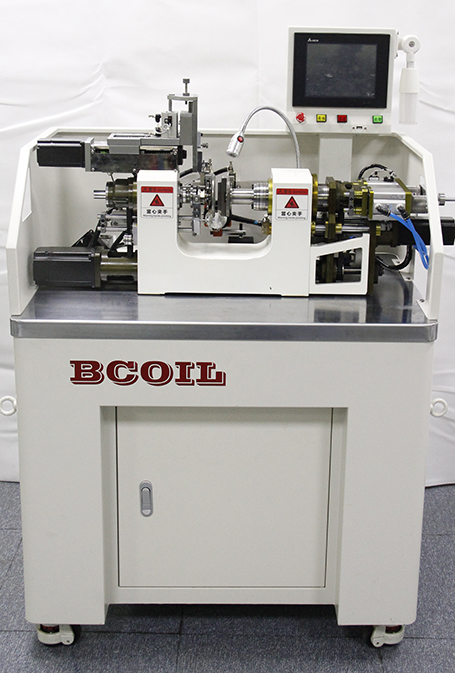

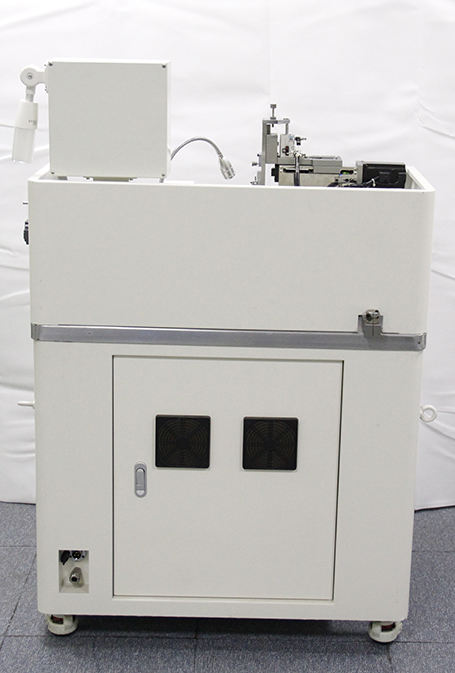

This machine is an economical single axis winding machine designed for air core coils. It can wind most of the air core coils, and can also be customized for special products.
The body is cast with cold iron, which is firm and stable; The control system adopts touch screen input, and the parameter setting is simple and easy to understand. The mechanical structure is designed reasonably, and all materials used are processed by special technology. The mechanical movement part adopts imported servo motor and high-precision ball screw, and the rotating part adopts imported bearings to ensure the high efficiency and precision of the product; The equipment can be efficiently and stably produced 24 hours a day, and one person can operate multiple equipment. The equipment has high compatibility and can cooperate with the automatic production line.

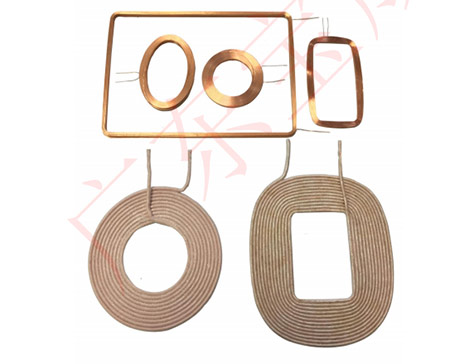

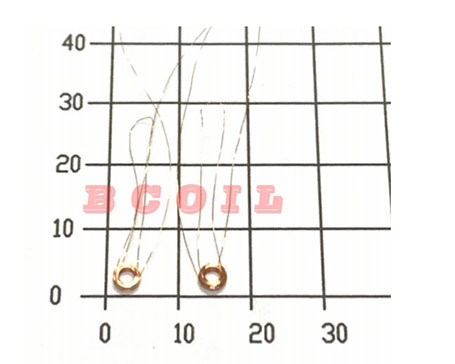

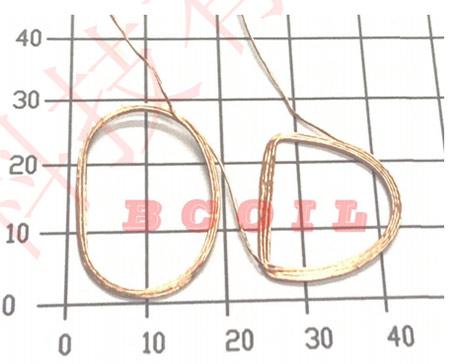

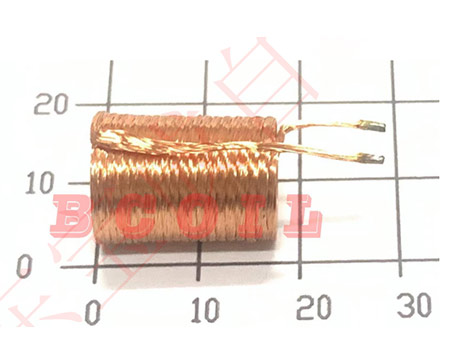

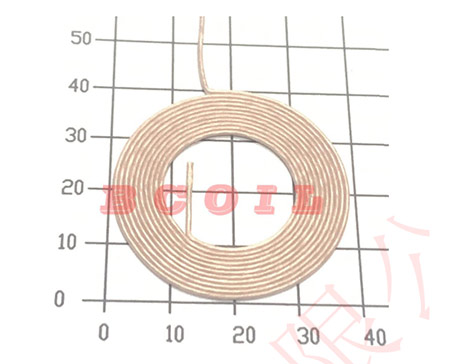

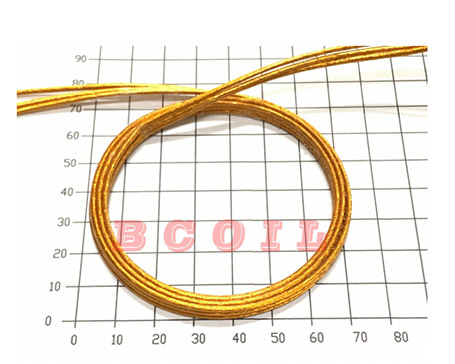

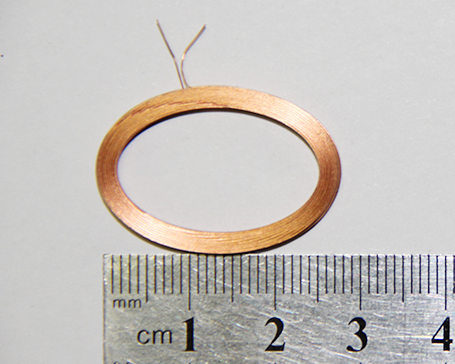

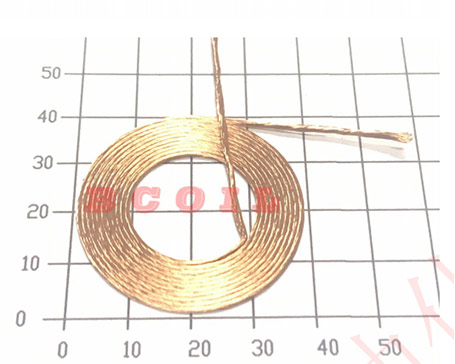

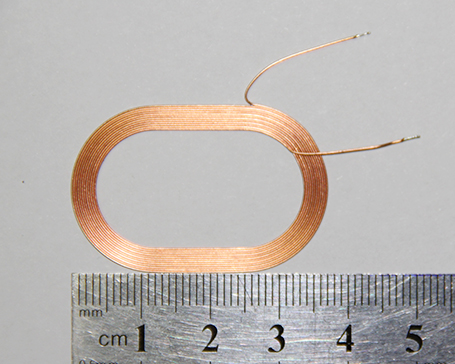

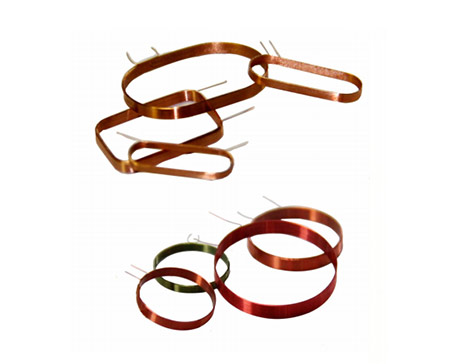

It is applicable to various self-adhesive coils such as air core, induction, camera, monitoring, lens conversion, card reader, motor ear, headset, access control, ID card, IC card, toy swing, coin dropping, wireless charging, wireless transceiver, anti-theft bus card, key chain, mobile phone speaker, loudspeaker, inductive magnetic suspension, medical inductance, brushless motor, etc.
name | parameter | name | parameter | |||||
model | BC-DZYXQ-BAS | Applicable wire diameter | Outer diameter: Max. ø 120mm Winding amplitude: Max 20mm | |||||
Spindle (S axis) | 750W Motor stop accuracy:±0.1° Decomposition capability:0.1° | Winding shape | Round/shaped | |||||
Spindle revolutions | Max:3500rmp | Applicable wire diameter | Single strand wire ø 0.02mm ~ 0.6mm multi strand wire Max. ø 0.08x110 strand | |||||
Spindle revolutions | Clockwise/counterclockwise | Power Supply | AC220V±10% single-phase 50/60Hz | |||||
Flat cable (X-axis) | 200W motor Moving distance 70mm Decomposition capability:0.001mm Spacing decomposition capability:0.001mm |
Power consumption | About 2.0KvA | |||||
Winding width (Y axis) | 400W decomposition capacity: 0.001mm | Power consumption | ≥0.4MPa | |||||
Input mode | Man machine interface (8-inch control panel) | Machine size (L * W * H) mm | 900×600×1400mm | |||||
Number of control axes | 3 Axis | Machine weight | About 210KG |
