Multi wire parallel winding machine
Equipment introduction

Multi wire parallel winding machine is a new type of winding machine designed for the coil of wireless charging receiver. Multiple groups of wires can be wound at the same time. The tension can be switched during the winding process. The incoming and outgoing lines at any position can have multiple groups of lines automatically incoming - automatic thread trimming - automatic winding - automatic stripping - assembly line output.

Multi device features

The control system adopts touch screen input, and the parameter setting is simple and easy to understand. The mechanical structure is designed reasonably, and all materials used are processed by special technology. The mechanical movement part adopts imported servo motor and high-precision ball screw, and the rotating part adopts imported bearings to ensure the high efficiency and precision of the product; The equipment can be efficiently and stably produced 24 hours a day, and one person can operate multiple equipment. The equipment has high compatibility and can cooperate with the automatic production line.

Applicable products of equipment

Multiple wires are wound in parallel.

Basic parameters of multi wire parallel winding machine
name parameter name parameter
model BC-BAS-DXBR Number of control axes 6-axis
Flat cable (X-axis)​ Stop accuracy of 750W motor: ± 0.1 °; Decomposition capacity: 0.1 ° Tensioner Up to 34 servo tensioners can be installed (variable tension)
Spindle revolutions​ Max:3500rmp Applicable coil Multi wire parallel wound coil
Spindle direction Clockwise/counterclockwise Winding shape​
Flat cable shaft (X) Decomposition capacity of 200W motor: 0.001mm Applicable wire diameter Single strand wire ø 0.02mm ~ 0.3mm
Winding width axis (L)​
400W decomposition capacity: 0.001mm Power Supply AC220V±10% single-phase 50/60Hz
Upper and lower axes (Z) Decomposition capacity of 200W motor: 0.001mm Power consumption​ About 3KvA
Front and rear axle (Y)​
Decomposition capacity of 200W motor: 0.001mm​ Air source ≥0.4MPa
Bobbin (W)​
Decomposition capacity of 200W motor: 0.001mm​ Specification (L * W * H) 2500×820×1800mm
Input mode​
Man machine interface (8-inch control panel) Machine weight​​
about 380KG

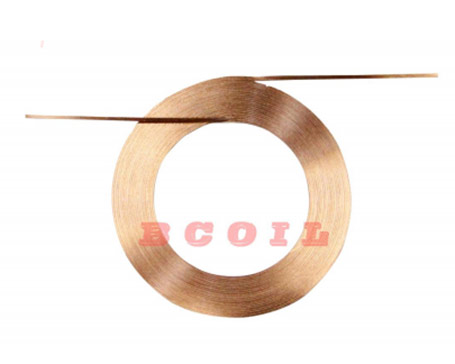

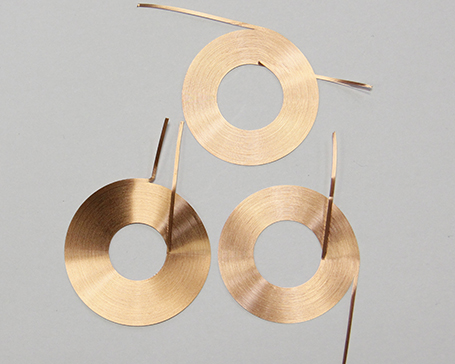

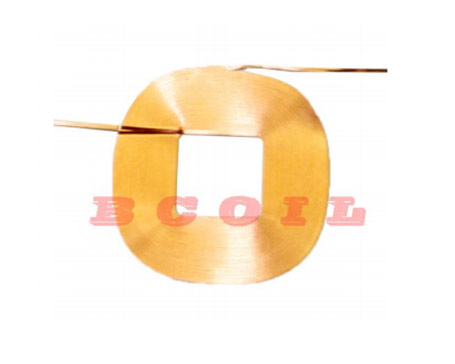

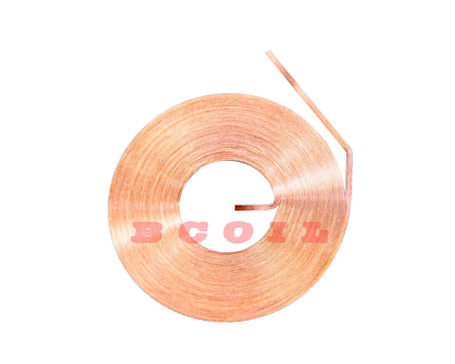

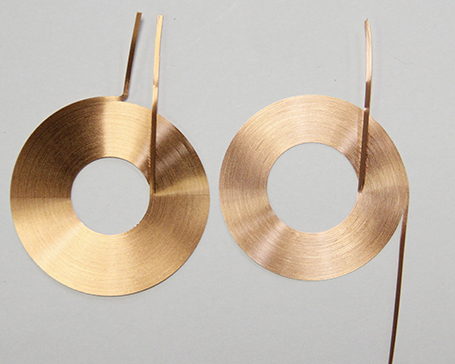

Equipment Output Product​
