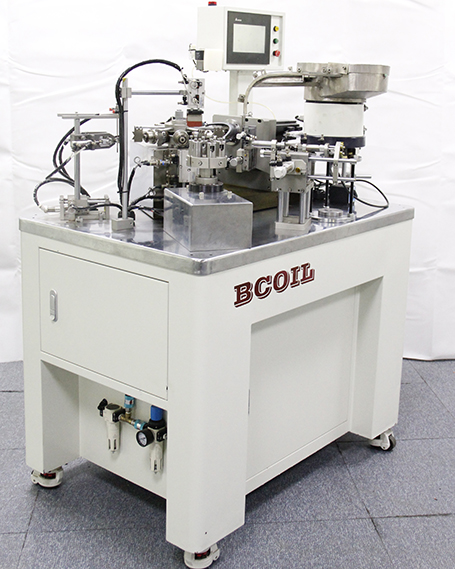

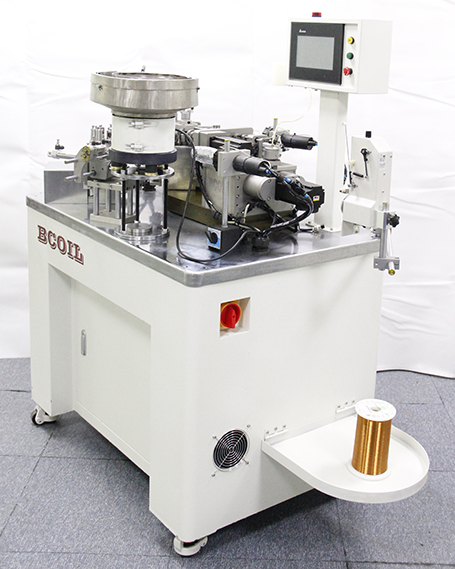

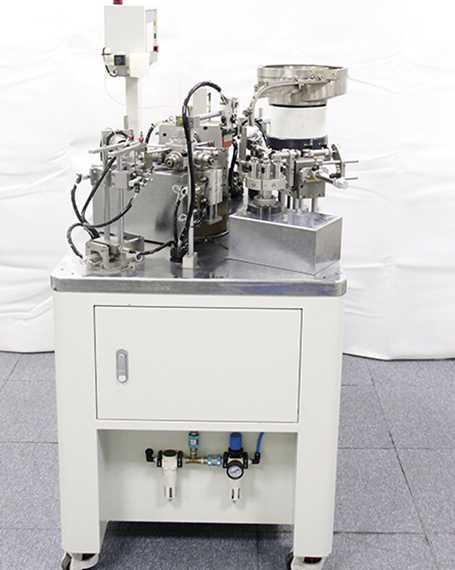

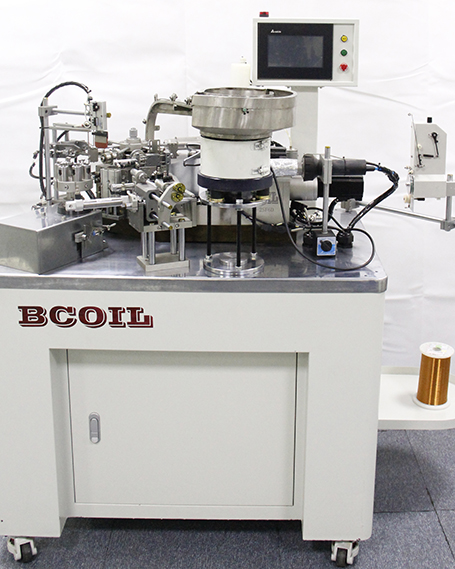

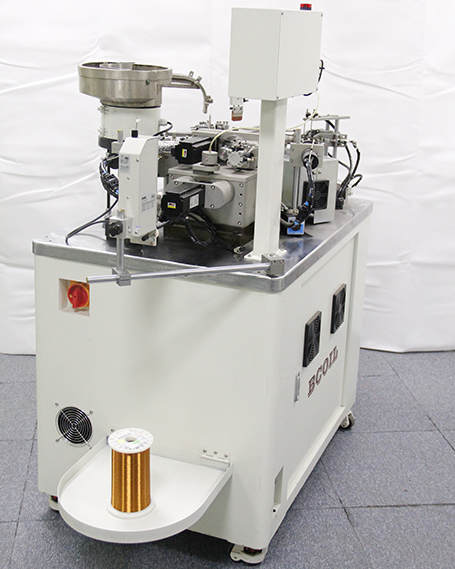

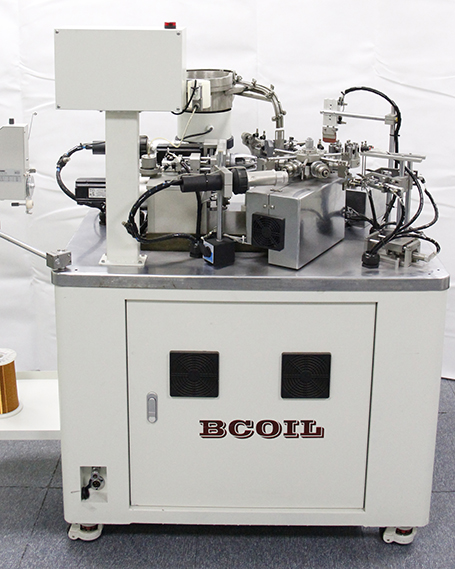

This machine is a special model for baking and shaping skeleton voice coil. It can wind two kinds of enamelled wire, namely hot air and alcohol soluble wire. The paper tube is sent to the jig core through the vibrating disc and the feeding mechanism. The main shaft is wound with flying fork, and the six station rotary cycle is used for winding and trimming. The sound gauge locates the wound coil on the sound gauge (the position of the sound gauge can be identified) through the vibrating disc combined with the reclaiming mechanism and the stripping mechanism, and finally moves the product out through the assembly line.

The control system adopts touch screen input, and the parameter setting is simple and easy to understand. The mechanical structure is designed reasonably, and all materials used are processed by special technology. The mechanical movement part adopts imported servo motor and high-precision ball screw, and the rotating part adopts imported bearings to ensure the high efficiency and precision of the product; The equipment can be efficiently and stably produced 24 hours a day, and one person can operate multiple equipment. The equipment has high compatibility and can cooperate with the automatic production line.

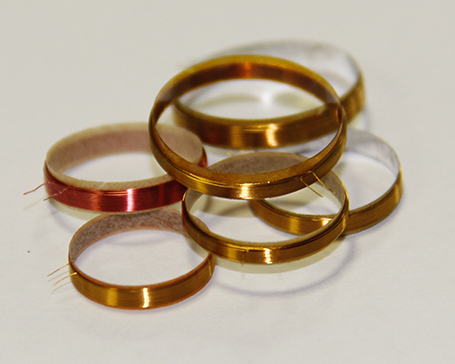

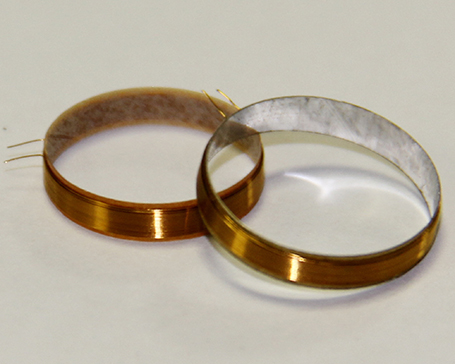

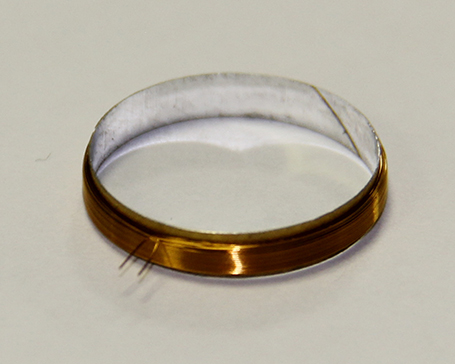

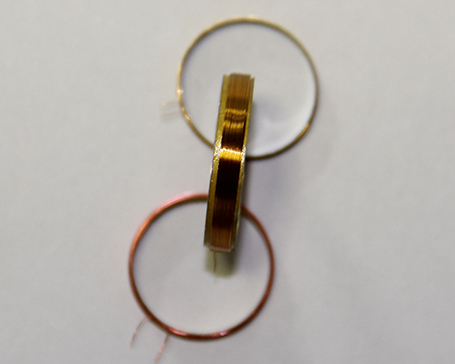

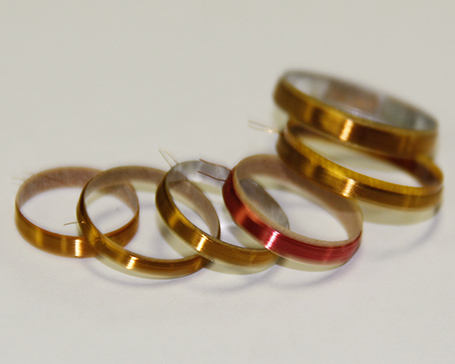

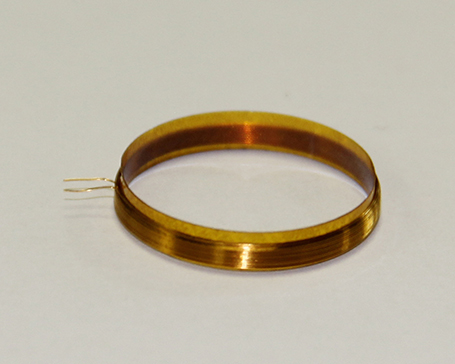

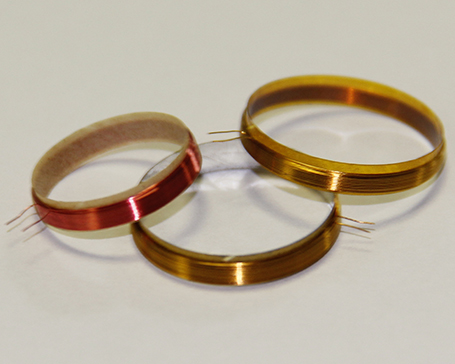

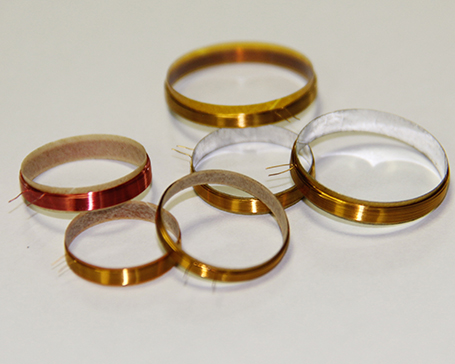

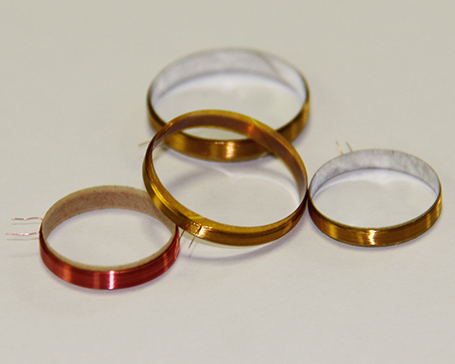

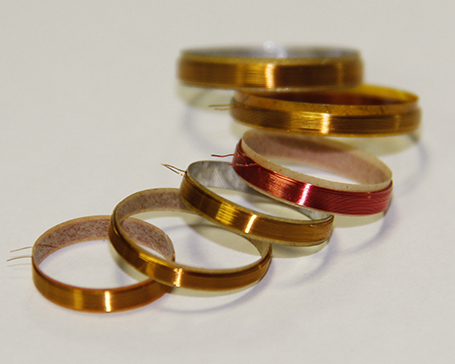

Round skeleton voice coil.
