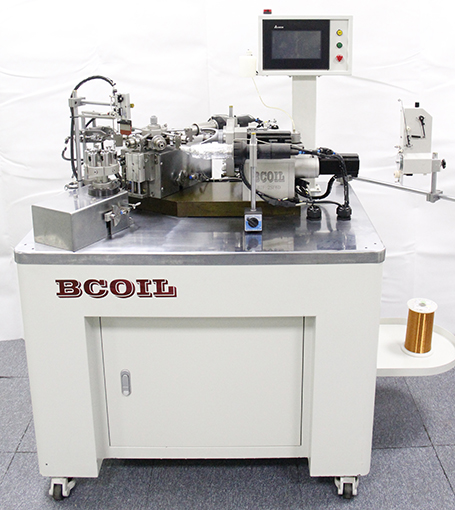

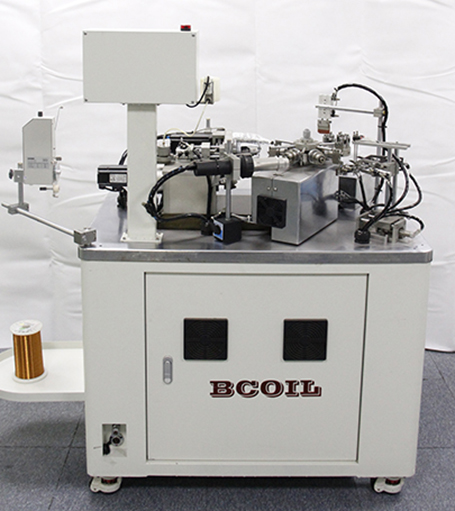

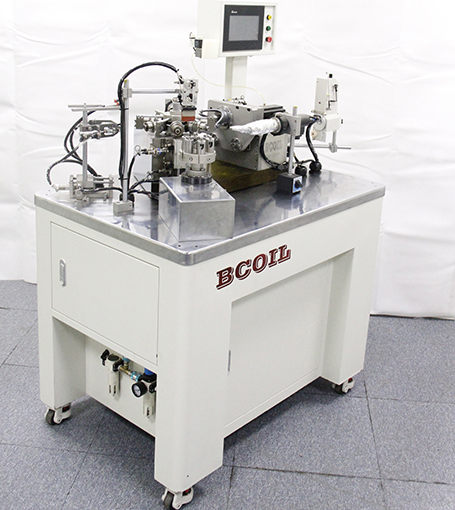

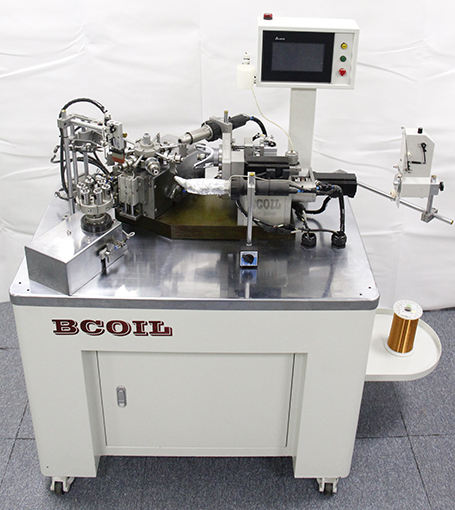

This machine is a special model for hollow voice coil. It can automatically calculate the width by adding a motor control shaft. Each station can modify the width separately, which can squeeze and correct the formed voice coil. It can be used to wind hot air and alcohol soluble enamelled wire, and can also be used to wind general skeleton voice coil manually. The control system adopts touch screen interface, which is easy to operate and learn. The mechanical structure is designed reasonably, and all materials used are processed by special technology. The mechanical movement part adopts imported servo motor and high-precision ball screw, the rotating part adopts imported bearings, the spindle flying fork type winding, six station rotary thread cutting and stripping ensure the high efficiency and precision of the product.
model | BC-3SF7D-BIF | Input mode | 7-inch color screen | |||||
Spindle (S axis) | Delta 400W motor Stop accuracy of 400W motor: ± 0.1 °; Decomposition capacity: 0.1 ° | Control system | PLC | |||||
Spindle revolutions | Max:4500rmp | 切线方式 | 气压切断 | |||||
cable (X-axis) |
Delta 400W motor Decomposition capacity: 0.1 ° |
Number of control axes | 4-axis | |||||
Winding width (Y axis) |
Moving range: max20mm; Decomposition capacity: 0.001mm |
Power Supply | AC220V±10% single-phase 50/60Hz | |||||

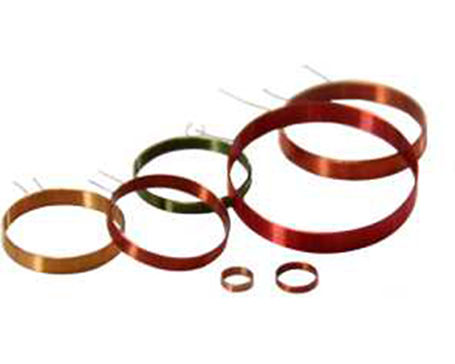

Applicable to winding products | Round hollow voice coil | Power consumption | About 2.0KvA | |||||
Applicable wire diameter | ø0.015mm~0.5mm | Air source | 约0.4MPa | |||||
Hourly capacity | 1000pcs-3000pcs/Hr | Machine dimensions | 1,000(W)×680(D)×1100(H)mm | |||||
Rotation mode | Six stations | Machine weight | About 200KG |
